Improvements in vaccines and their delivery systems that increase vaccine efficacy, safety, or compliance and minimize animal stress are essential in the swine industry. This article is an update to our 2008 review in journal of Swine Health and Production about needle-free technology and its uses in disease control in swine. Needle-syringe devices have been the predominant method for vaccine and drug delivery for swine. Although needle-syringe devices are inexpensive and easily adaptable to different settings, needle-free technology offers advantages compared to conventional vaccine delivery methods including elimination of broken needles, consistent vaccine delivery, reduced vaccine volume and higher antigen dispersion, elimination of accidental worker needle sticks, elimination of needle disposal and less pain and stress (Table 1). The elimination of broken needles and accidental needle sticks are important in US pork quality assurance (PQA) program. Needle-free injection device (NFID) result in a high pressure stream that penetrates the epidermis, dermis with some subcutaneous penetration (Figure 1, panel A). NFID administered swine vaccines can use half to a tenth of the dose required for intramuscular vaccines because of the higher antigen dispersion and contact with the antigen presenting cells found in skin (Figure 2). The number of needle-stick injuries associated with swine workers is unknown, but needle-stick injuries caused the highest number of physical injuries in swine veterinarians with 580 out of 794 (73%) surveyed veterinarians suffering injuries. Thirty-six percent of these injuries resulted in adverse effects (pain, local swelling, hematoma, infection, superficial abscess, and cellulitis). In people, the newer generation needle-free devices have been shown to decrease pain and stress at the time of vaccination compared to needle-syringe devices, although there have been some complaints of post-vaccination pain.
Table 1. Advantages and Disadvantages of Needle-free Injection Devices
Elimination of Broken Needles
Consistent Vaccine Delivery
Reduced Vaccine Volume
Higher Antigen Dispersion
Elimination of Worker Needle Sticks
Elimination of Needle Disposal
Lower Pain and Stress
Higher Start-up Costs
Infrastructure for Exhaustible Gas Systems
Higher requirement for training and maintenance
No one size fits all NFID
Worker Confidence in NFID

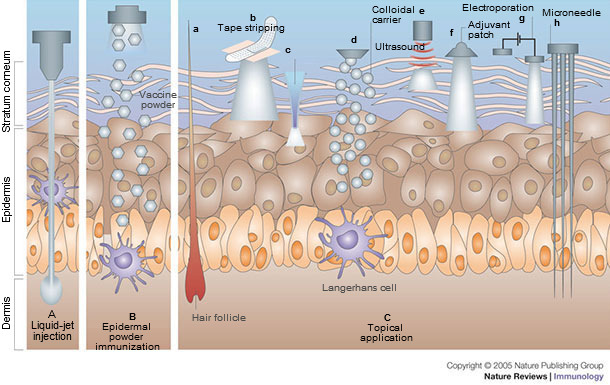

Figure 1 Immunization by cutaneous routes. A) Liquid-jet injection delivers vaccine to muscular, subcutaneous or dermal regions, depending on the parameters of the injection. B) Epidermal powder immunization delivers vaccine powders to the superficial layers of the skin (that is, the epidermis and the superficial layers of the dermis), where they are recognized by Langerhans cells. C) Topical application of vaccines delivers vaccines to the epidermis, where they are recognized and processed by Langerhans cells. Immunization by topical vaccine application is facilitated by several methods. Ca) DNA immunization can be carried out through hair follicles. Cb) Tape stripping removes the stratum corneum and facilitates vaccine absorption. Cc) Thermal or radio-wave-mediated ablation of the stratum corneum creates micropores that increase vaccine delivery. Cd) Colloidal carriers such as microemulsions and transfersomes increase dermal absorption of topically applied vaccines. Ce) Low-frequency ultrasound is an adjuvant for topically applied vaccines, and it also increases vaccine delivery to the skin. Cf) Topically applied adjuvants, such as cholera toxin, can induce potent immune responses. Cg) Electroporation of the stratum corneum increases the delivery of DNA vaccines to the epidermis. Ch) Shallow microneedles that penetrate into the epidermis deliver vaccines effectively. Reprinted with permission from Macmillan Publishers Ltd.
Figure 2. The distribution of dendritic cells in the epidermis, dermis and subcutaneous tissue in the pig. Dendritic cells are stained brown. (Photo courtesy of Drs. Charles Nfon and William Golde, Plum Island Animal Diseases Center, Agricultrual Reseach Service, USDA)
Figure 3. Experimental design to evaluate the ability of a needle-free injection device (NFID) to prevent hematogenous transmission of porcine reproductive and respiratory syndrome virus (PRRSV)
Needle-free devices also have disadvantages, including start-up cost of the equipment, exhaustible gas-storage infrastructure (for those systems using compressed or CO2 gas system), technical and operational expertise (training of the operators and maintenance of the units), and inability to completely replace needle-syringe devices in the swine production unit (Table 1). The cost of the equipment varies depending on the type of injector for the needle-free swine units and there are additional associated costs with maintenance and infrastructure especially with compressed gas devices. Needle-free application requires a consistent application method. Needle-free devices are calibrated to deliver the vaccine when the needle-free device is perpendicular (90º) to the skin. Vaccinations made at more acute or oblique angles will affect the distribution of the vaccine in the tissue. In addition, because of the moving parts and gas system, regular maintenance is required. Finally there is no “one-size-fits-all” needle-free device for all applications that require injections. Varying pig age, treatment dose, and viscosity of injection substance require different injection volume, injection pressure, and even different NFIDs. Another reason for the use of transdermal devices (TD) has been the thought that these devices should limit animal-to-animal spread compared to needle administration. Vaccination of PRRSV positive animal using a TD spread PRRSV to negative animals 25% of the time compared to 100% in animals with the needle administration (Figure 3). Although the TD certainly decreased spread, it illustrates that infections can be spread by TD devices and the operator still needs to use good sanitation methods in disinfecting the TD device.
Reasons for swine low industry implementation rate involve cost of the unit and associated maintenance and infrastructure costs, higher complexity than needle-syringe device, uncertainty if the animal was vaccinated (i.e., no physical sensation that the animal was vaccinated and/or a “wet” appearance at the injection site) and requirement for training. In conclusion, TD have many advantages in delivering vaccines and drugs in swine. However they require excellent training of personnel and excellent maintenance of the equipment.
