Dynamic Weighing Scales

Dynamic Weighing Scales

ref: 3708
5.0 (2)
3185+ iva

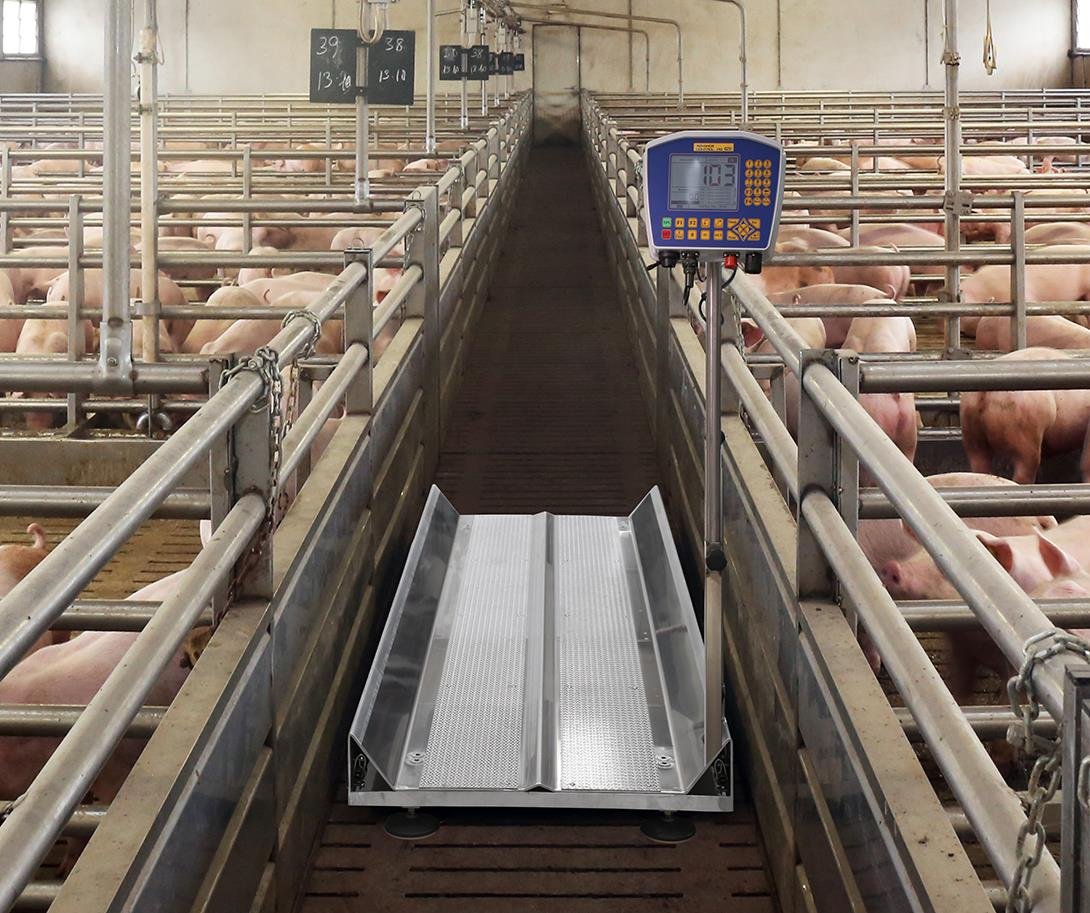

An electronic system for weighing pigs quickly while they are moving (without stopping or penning them in).

+ Information

FUNCTIONS AND FEATURES OF THE SYSTEM:

  • calculates the total weight of all transited animals
  • calculates the average weight of all transited animals
  • stores weights in an archive menu
  • saves data on USB pen drive
  • online help for each screen/function of the control unit
  • numerical keyboard with writing mode identical to that found in mobile phones
  • excess load control system
  • possibility of handling international units of measurement
  • possibility of regulating [screen] contrast
  • possibility of regulating [screen] brightness
  • internal clock
  • reads the supply voltage
  • settings backup
  • data backup

MAIN USES:

  • periodic sampling for control and checking of pig weight gain, conversion and box uniformity data
  • checks to ensure uniform loads are sent to the slaughterhouse

OBJECTIVES:

  • to improve conversion ratios
  • to reduce shed emptying time
  • to avoid incurring penalties at the slaughterhouse due to the lack of uniformity of the pigs delivered
  • to win prizes for the uniformity of the pigs delivered

The equipment consists of:
BASE PLATE

  • Specially moulded aluminium sheet for the passage of the pigs
  • Slip-resistant floor
  • Adjustable stainless steel support for control unit and battery
  • Aluminium cable junction box
  • Protective sheathing for shielded cables
  • Stainless steel telescopic handles

WEIGHING SYSTEM

  • Probes
  • Shielded cables
  • Slip-resistant adjustable feet

ELECTRONIC CONTROL UNIT

  • Die-cast aluminium container
  • 5.7” back-lit LCD display
  • High sensitivity membrane keyboard
  • Power supply adapter
  • Connectors
  • Connection cable
  • Battery

DIMENSIONS

  • Length : 2.000 mm
  • Width: 700 mm standard 600 mm on request
  • Platform height from the ground: 80 mm
  • Weight about: 40 kg
