Ultrasound - Backfat MSU3 3,5 MHzUltrasound - Backfat MSU3 3,5 MHz (2)Ultrasound - Backfat MSU3 3,5 MHz (3)Ultrasound - Backfat MSU3 3,5 MHz (4)Ultrasound - Backfat MSU3 3,5 MHz (5)Ultrasound - Backfat MSU3 3,5 MHz (6)Ultrasound - Backfat MSU3 3,5 MHz (7)Ultrasound - Backfat MSU3 3,5 MHz (8)Ultrasound - Backfat MSU3 3,5 MHz (9)

Ultrasound - Backfat MSU3 3,5 MHz

ref: 3451
4.0 (1)
1581.8+ iva
in stock

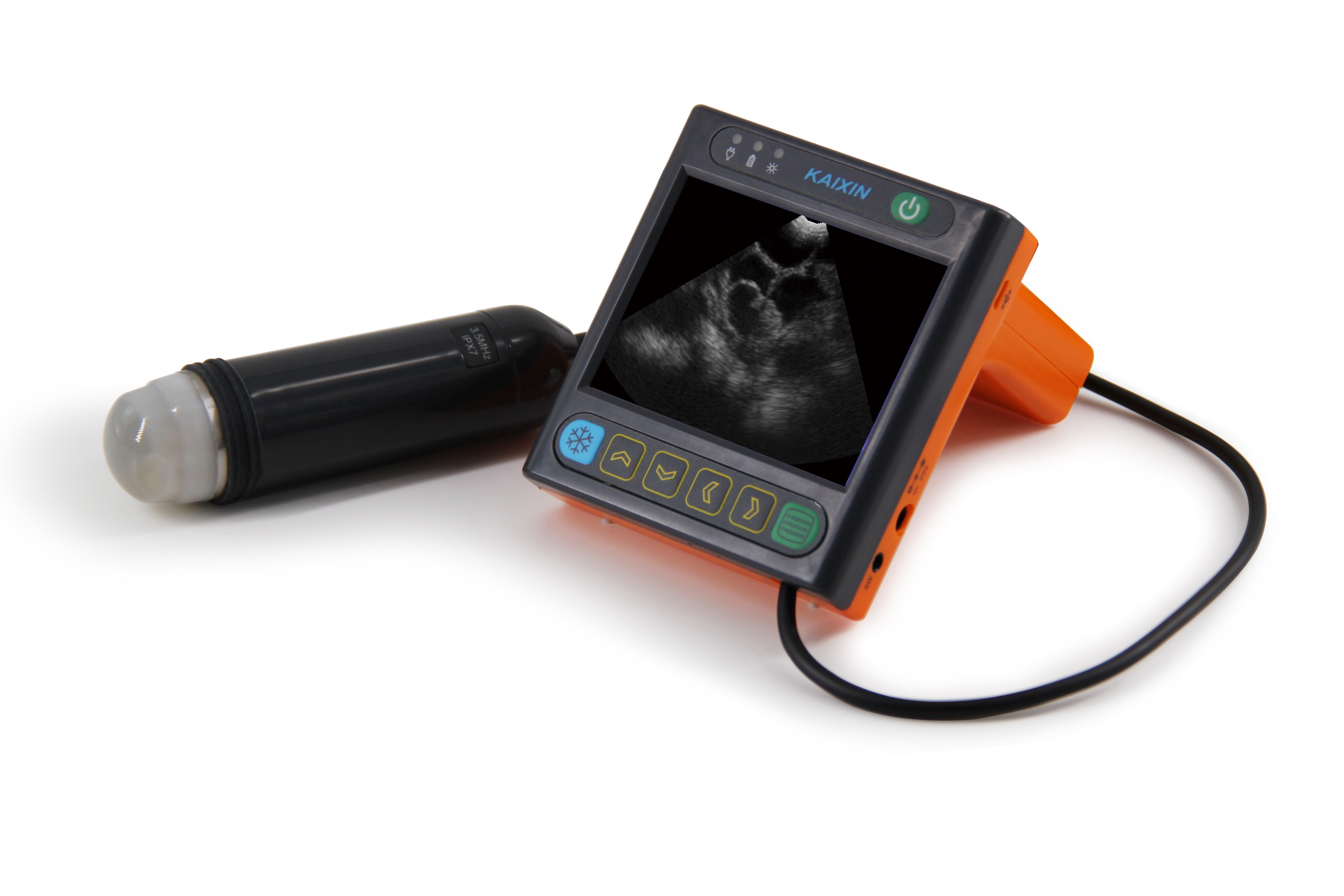

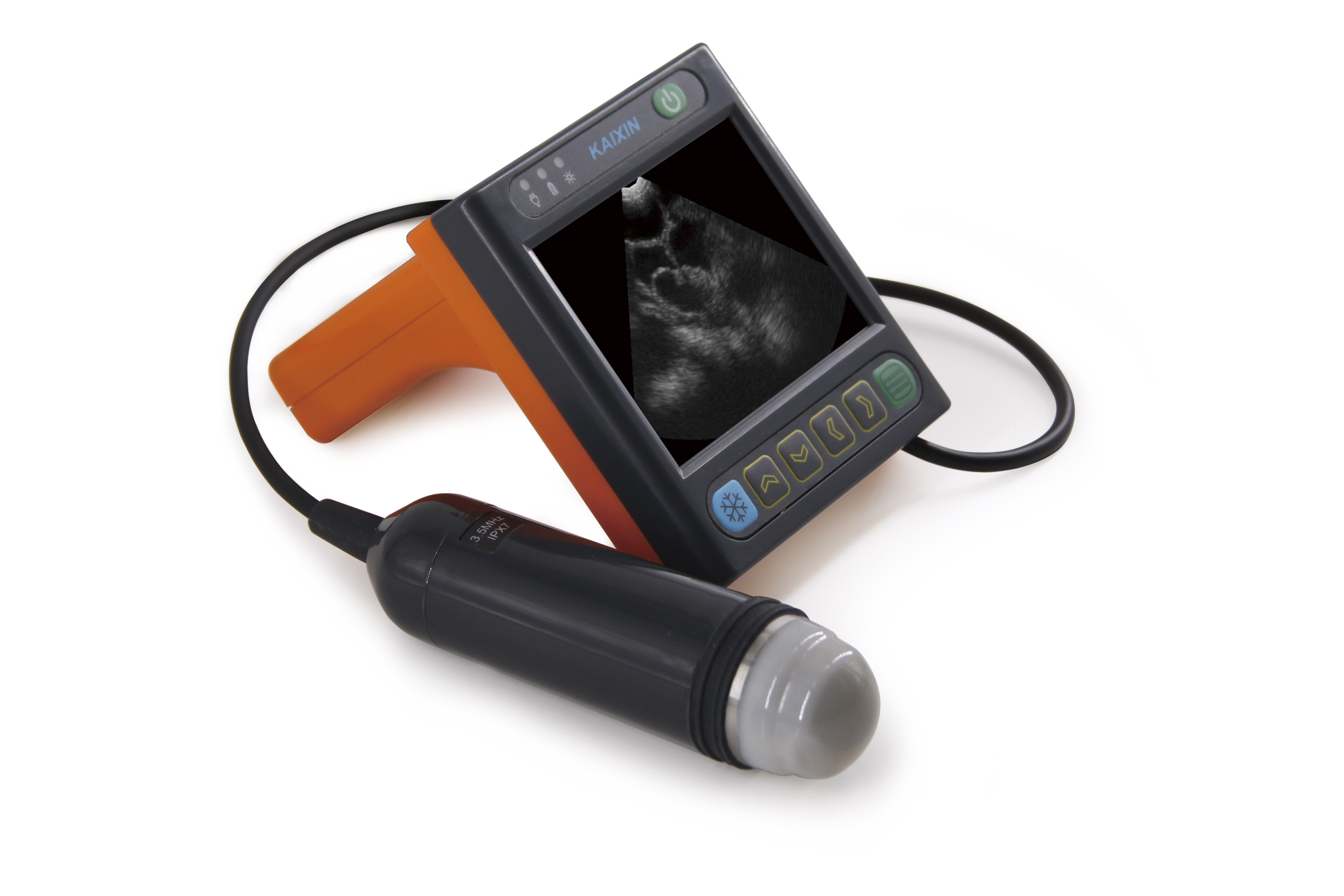

Full digital Mechanical Sector ultrasonic diagnostic instrument

+ Information

Product parameters:

  • Adopted the latest cortex-m4 embedded control system + miniaturized exclusive ultrasound technology hardware system; MSU3 with triple function of A scan, B scan and ear tag scan, the perfect solution to the various needs of users;
  • 3.5" high resolution color LCD, smart, light and portable,suitable for outdoor use;
  • Menu interface operation, Language: Chinese/English switchable( factory defaults);
  • Customized multiple languages: Chinese, English, French, German, Spanish, Portuguese;
  • Gray:256
  • Display mode:B, 2B, A, total 3 kinds.
  • B mode and A mode gain range: 27 ~ 90dB
  • Near field Gain: -31 ~ 0dB;
  • Far Field Gain: 0 ~ 31dB;
  • Dynamic range:27~90dB
  • 3 kinds of depth range, 126,163,200, the maximum display depth of 200mm;
  • Compression curve adjustment: 4 kinds, from 0~ 3;
  • Frequency: 2.5M, 3.5M;
  • Frame correlation: 0 ~ 5,6 kinds;
  • Pseudo-color function: 0 ~ 7,8 kinds (including black and white);

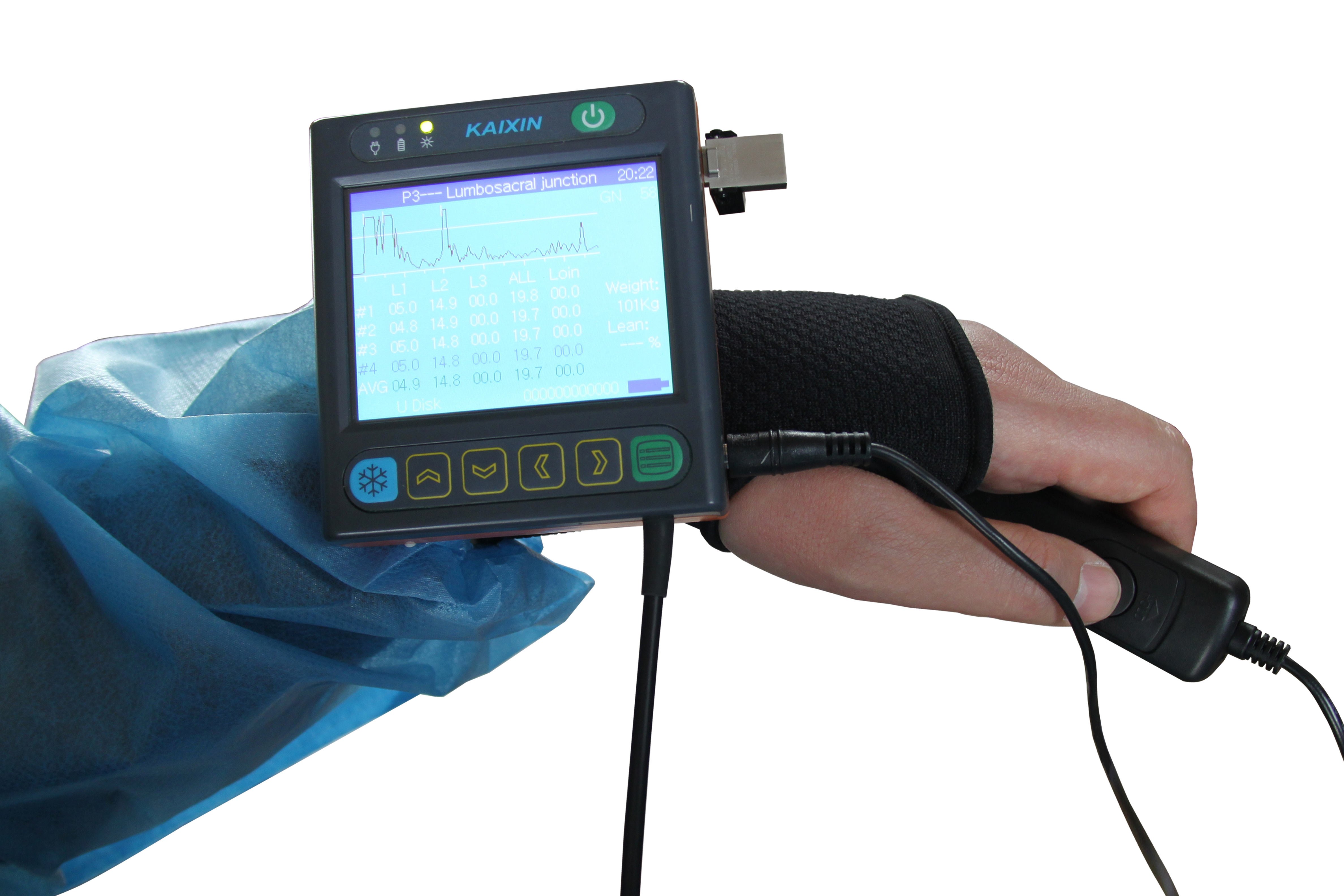

  • Measure backfat thickness, loin muscle thickness and lean percentage;
  • Image Storage: image or measurement data stored in the U disk;
  • Scale of the image display: 3 kinds, "0" is without ruler, "1" is displayed 10mm pitch of dot scale, "2" is displayed vertical and horizontal pitch of 10mm dot scale;
  • Supports 3 kinds ear tag format: EM4305, EM4100, T5557;
  • Unique ear tag scanning function: ear tag scanning within a set time (10-30 seconds) to complete the ear tag scanning;
  • B scan and A scan measured data can be stored in Excel table, user-friendly data management, processing all kinds of information;
  • Unique menu disappears settings function: Menu disappears automatically at a set time, user-friendly observation image;
  • Screen saver function;
  • System settings probe guard time, automatically freeze, to protect probe;
  • Dual power supply.  Power: 100-240V ~ ± 10% 1.2-0.6A Frequency: 50-60Hz ± 1Hz;
  • Battery Configuration: Large capacity (2600mAh) lithium battery can support more than 300 minutes work;
  • Net Weight: 620g;
  • Main unit size:90×98×25mm(length x width x height)


Standard configuration:

  • Main unit: 1 pc

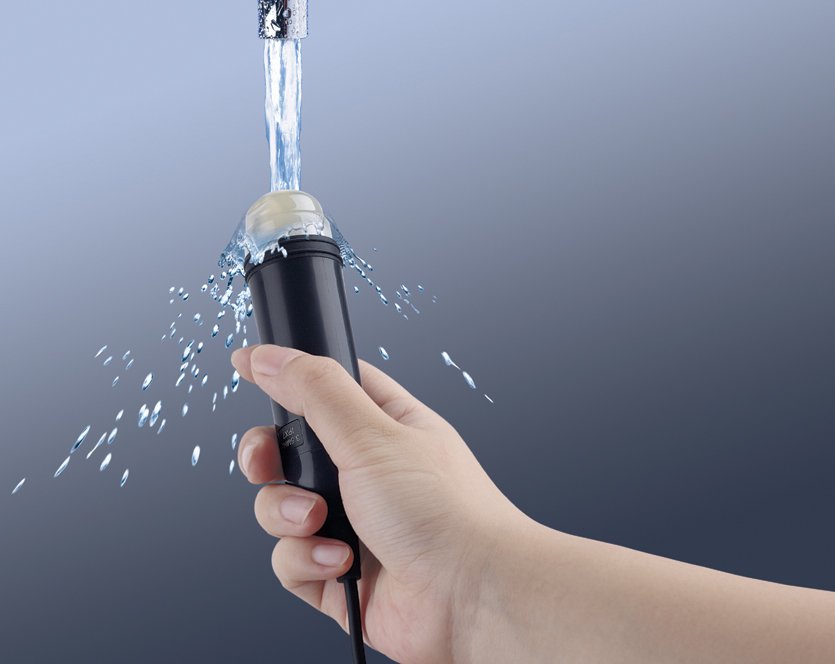

  • 3.5MHz mechanical sector probe : 1 pc.
  • Power adapter: 1 pc
  • Internal battery : 1pc
  • Power line : 1 pc
  • Shutter release line : 1 pc
  • Straps : 1 pc

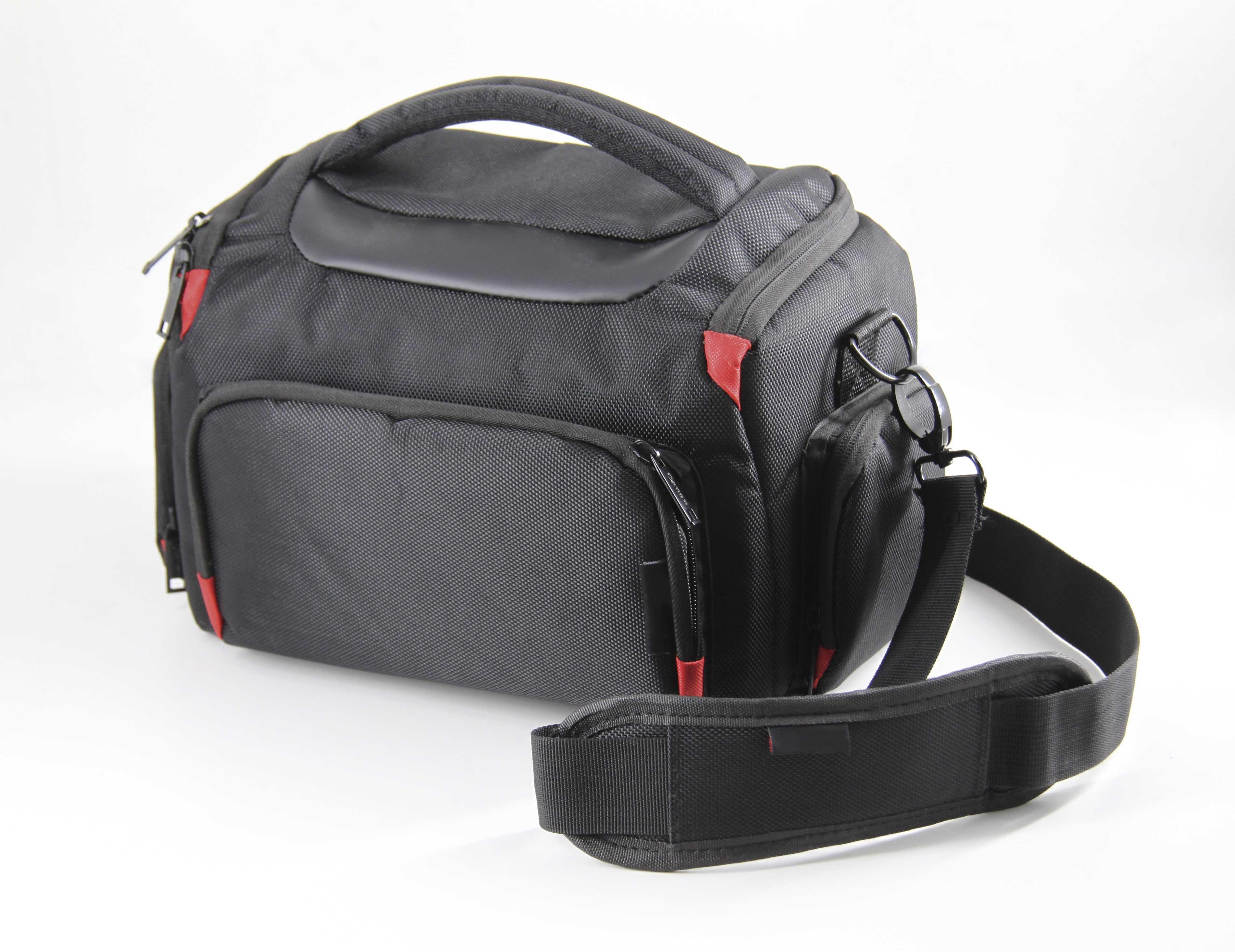

  • Instrument backpack : 1 pc
  • OTG U disk : 1 pc
